CamVac Dust Extractors
Compact (36 litre capacity) and Medium (55 litre capacity) dust extractors.
The cyclonic neutral vane theory technology draws the waste into the drum with great force and directs it around the outside edge, keeping the filters cleaner and allowing the waste to fall to the bottom of the drum. The lid features a low-noise-output motor exhaust design and when the optional 2 1/2" diameter hose is fitted, the sound of the motor can be directed away from the machine, greatly reducing noise in the workshop.
Each dust extractor includes 2 Metres of 100mm diameter dust Extraction Hose and Easy-fit Vuff.
Castor set and 2.5" diameter flexible hose (2.5 metre length) accessories are also available.



Prod. code Cat. code Description Price QTY.

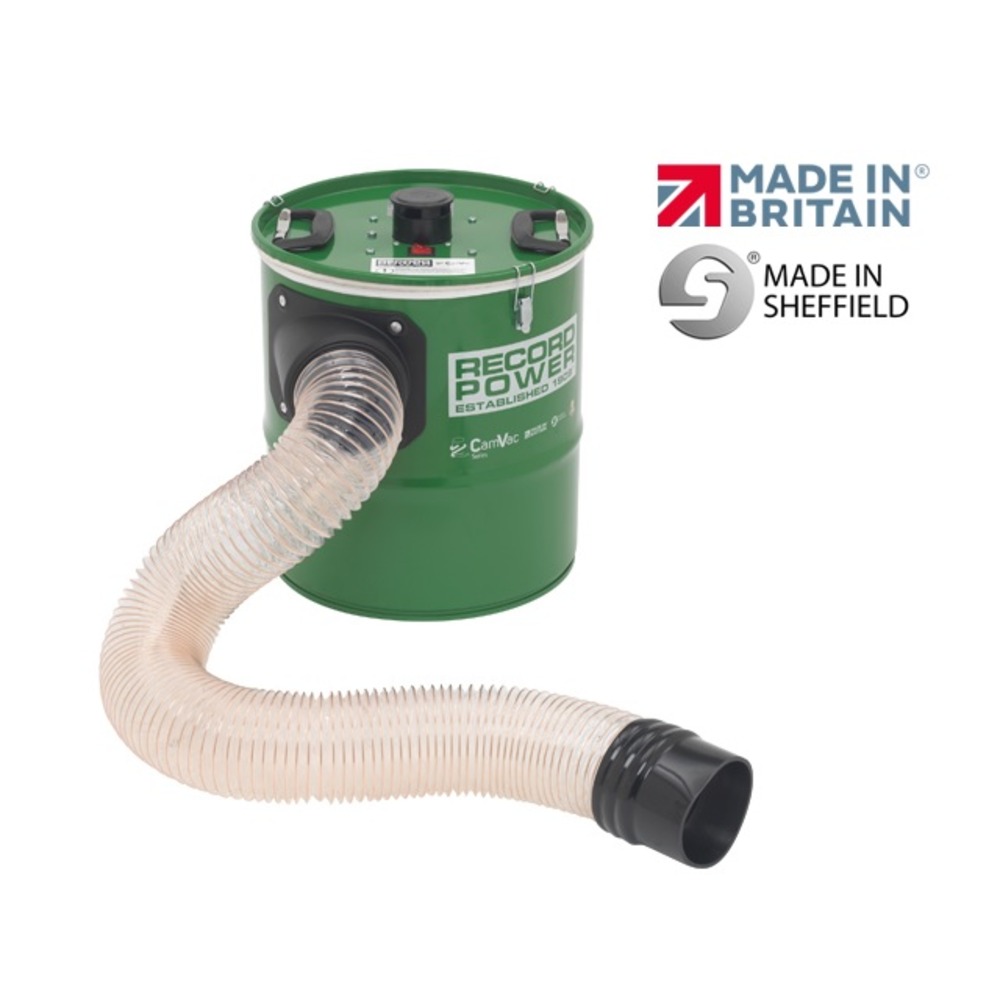

753-1701 753-1701 Camvac Compact Dust Extractor
Price Exc VAT (Inc VAT)

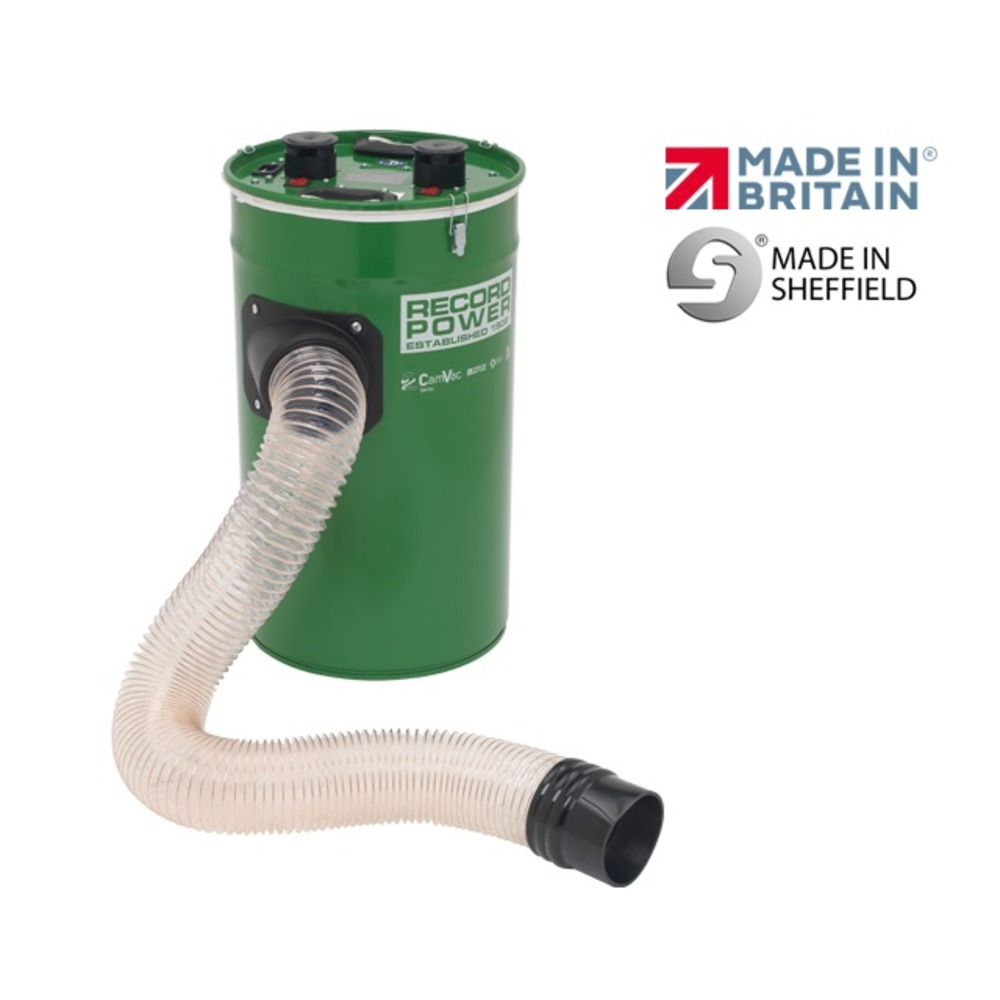

753-1705 753-1705 Camvac Medium Dust Extractor
Price Exc VAT (Inc VAT)

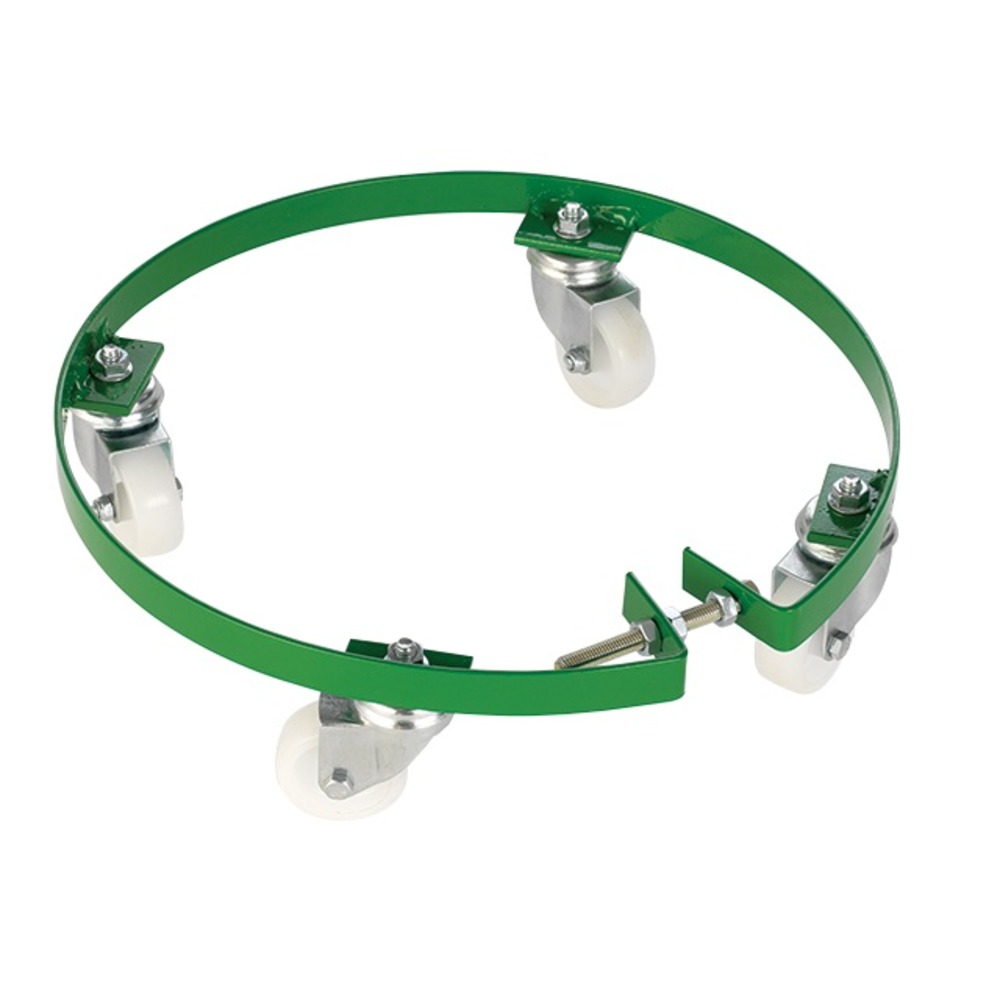

753-1707 753-1707 Caster set for Camvac Dust Extractor
Price Exc VAT (Inc VAT)

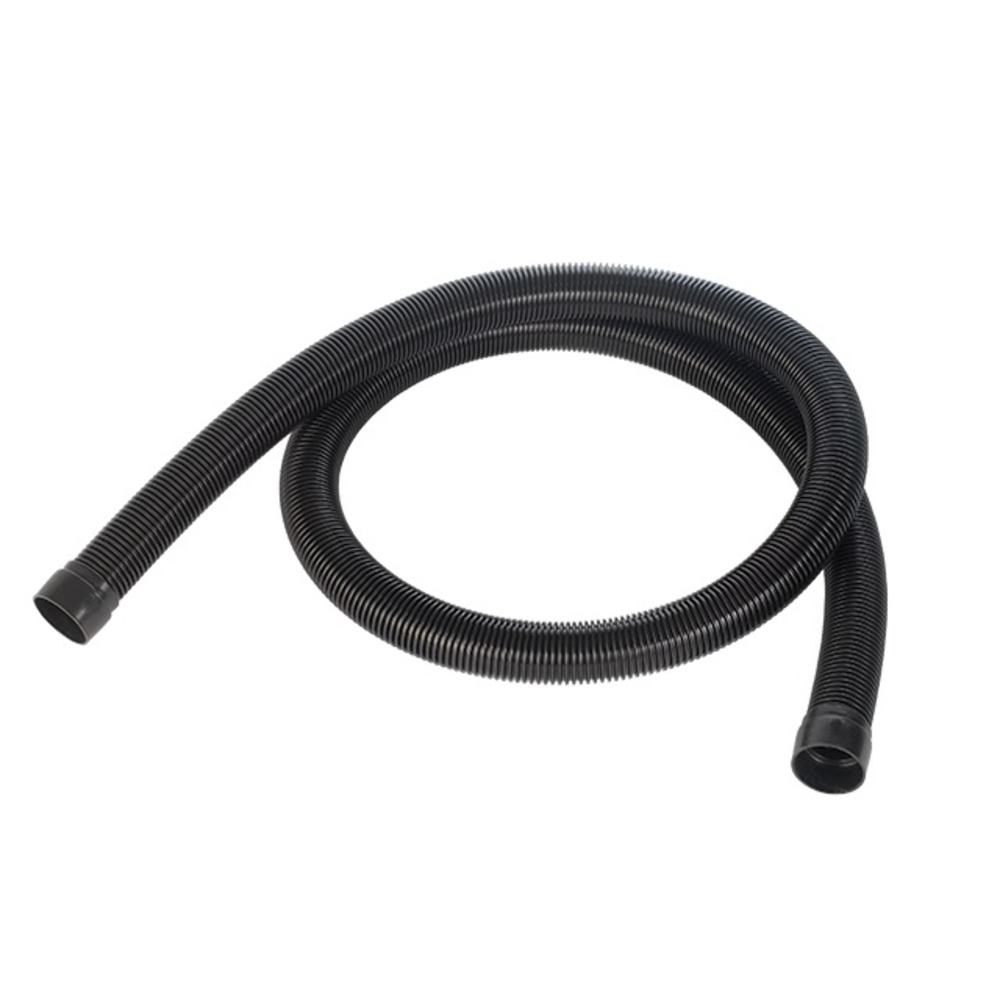

753-1708 753-1708 Flexible Hose 2.5" Diameter 2.5 metre length
Price Exc VAT (Inc VAT)
Key Features

Low Noise Output
CamVac machines are probably the quietest high-pressure-low-volume (HPLV) dust extractors available. The motor exhaust and cover design effectively reduce noise during operation, with tests showing sound levels as low as 74 dB on a single motor model. When the optional 2 1/2" hose is fitted to the motor exhaust, this can be reduced to approximately 68 dB, making them the ideal option if neighbourhood noise is a concern.
Three-Stage Filtration to 0.5 Microns
The drum filter and motor filters give three-stage filtration for fine dust, using two washable cloth filters and a paper filter system. The 0.5 micron filtration makes them ideal for use with fine dust and other materials hazardous to health.
Cyclonic Inlet
All CamVac models feature a unique cyclonic inlet system, which draws the waste around the side of the drum and away from the filters and motors, increasing their lifespan.
Bayonet Inlet Fitting
The machine inlet features a bayonet fitting, allowing for fast and easy connection of the extraction hose to the machine. Each machine is supplied with a corresponding bayonet hose fitting, which has a positive, secure and tight fit around the hose. Additional bayonet hose fittings are available.
  Compact (753-1701) Medium (753-1705)
Motor 1 x 1kW (single motor) 2 x 1kW (Twin motor)
Air Flow 54 litres per second 108 litres per second
Capacity 36 litres 55 litres
Filtration 0.5 microns 0.5 microns
Inlet Diameter 4" (100mm) 4" (100mm)
Weight 8.5kg 13kg
Size W370xD412xH397mm W370xD412xH624mm
